| 型号 Model |
库存 Stock |

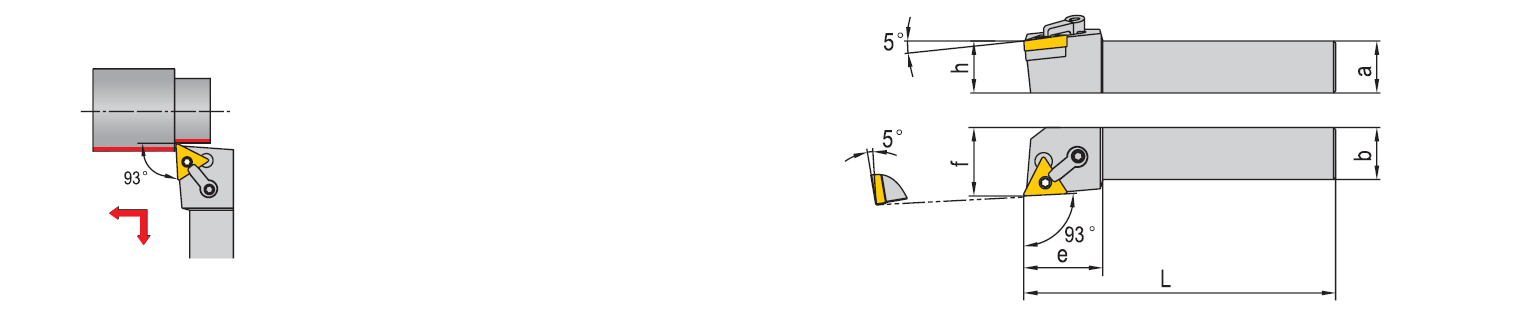

尺寸Size (mm) |
刀片 Insert |
刀垫 Shim |
销钉 Lock pin |
压板 Clamp |
双头螺栓 Clamp screw |
扳手 Hex wrench |
|||||||
| 右刀 Right hand |
左刀 Left hand |
R | L | a | b | L | h | f | e | ||||||
| MVJNR1616H16 | MVJNL1616H16 MVJNL2020K16 MVJNL2525M16 MVJNL3232P16 |
○ ● ● ● |
○ ● ● ● |
16 20 25 32 |
16 20 25 32 |
100 125 150 170 |
16 20 25 32 |
20 25 32 40 |
42 42 42 42 |
VN..1604.. | IVSN-322 | NL-34L | CL-30 | XNS-59 | S5/32，S5/64 |
| MVJNR2020K16 MVJNR2525M16 MVJNR3232P16 |
VN..1604.. | IVSN-322 | NL-34L | CL-30 | XNS-510 | S5/32，S5/64 | |||||||||
