| 型号 Model |
库存 Stock |
尺寸Size (mm) |
刀片 Insert |
刀垫 Shim |
销钉 Lock pin |
压板 Clamp |
双头螺栓 Clamp screw |
扳手 Hex wrench |
|||||||

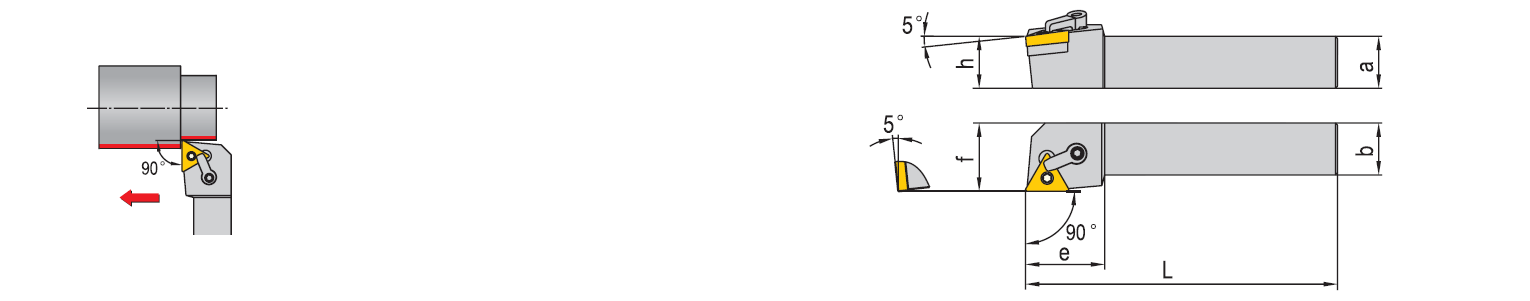

| 右刀 Right hand |
左刀 Left hand |
R | L | a | b | L | h | f | e | ||||||
| MTGNR1616H16 MTGNR2020K16 MTGNR2525M16 MTGNR3232P16 |
MTGNL1616H16 MTGNL2020K16 MTGNL2525M16 MTGNL3232P16 |
○ ○ ○ ○ |
○ ○ ○ ○ |
16 20 25 32 |
16 20 25 32 |
100 125 150 170 |
16 20 25 32 |
20 25 32 40 |
29 29 29 29 |
TN..1604.. | ITSN-323 | NL-34L | CL-6 | XNS-36 | S3/32，S5/64 |
| MTGNR2020K22 MTGNR2525M22 MTGNR3232P22 |
MTGNL2020K22 MTGNL2525M22 MTGNL3232P22 |
○ ○ ○ |
○ ○ ○ |
20 25 32 |
20 25 32 |
125 150 170 |
20 25 32 |
25 32 40 |
35 35 35 |
TN..2204.. | ITSN-433 | NL-46 | CL-9 | XNS-510 | S5/32，S3/32 |
