| 型号 Model |
库存 Stock |

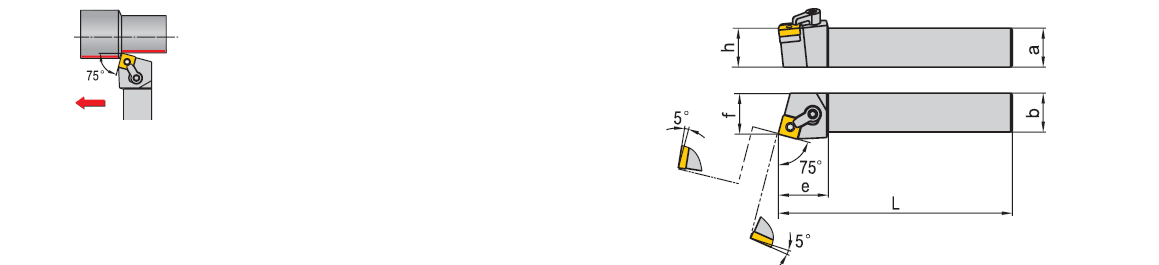

尺寸Size (mm) |
刀片 Insert |
刀垫 Shim |
销钉 Lock pin |
压板 Clamp |
双头螺栓 Clamp screw |
扳手 Hex wrench |
|||||||
| 右刀 Right hand |
左刀 Left hand |
R | L | a | b | L | h | f | e | ||||||
| MSRNR2525M12 | MSRNL2525M12 | ○ | ○ | 25 | 25 | 150 | 25 | 27 | 32 | SN..1204.. | ISSN-433 | NL-46 | CL-9 | XNS-59 | S5/32，S3/32 |
| MSRNR2525M15 | MSRNL2525M15 | ○ | ○ | 25 | 25 | 150 | 25 | 27 | 38 | SN..1506.. | ISSN-533 | NL-58 | CL-12 | XNS-510 | S5/32，S1/8 |
