| 型号 Model |
库存 stock |
* | 尺寸 Size(mm) |
螺钉Screw | 键Key | 螺钉Screw | 重量Weight | ||||

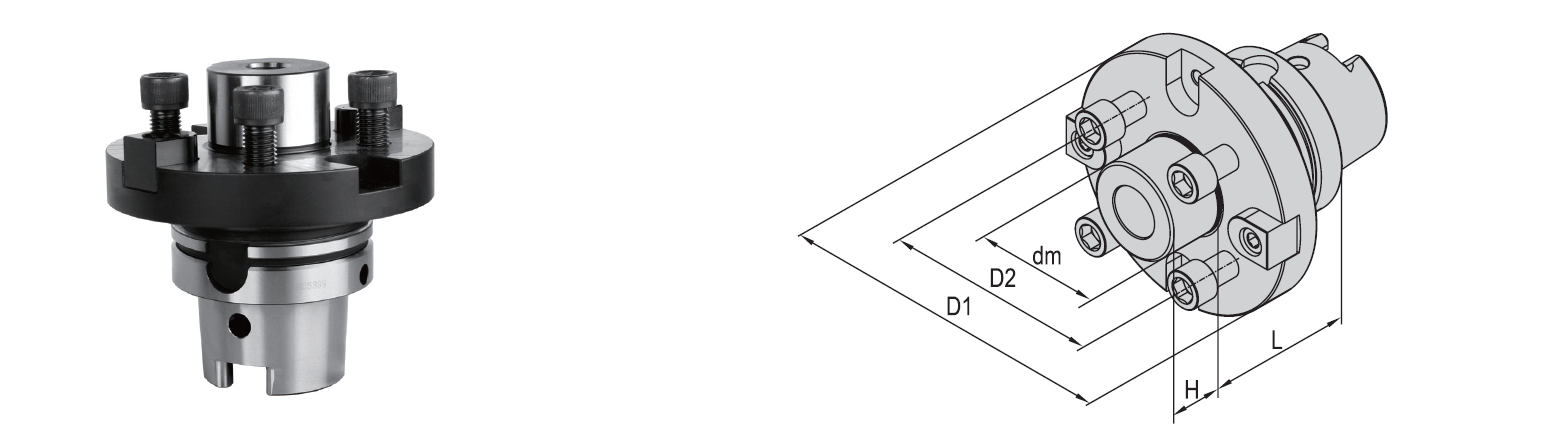

| dm | D1 | D2 | L | H | |||||||
| HSK63A-XMX40-65 | O | HSK63A | 40 | 89 | 66.7 | 65 | 27 | MS12045(4) | KXM40 | MS08020 | 2.3 |
| HSK100A-XMX40-75 | O | HSK100A | 40 | 89 | 66.7 | 75 | 27 | MS12045(4) | KXM40 | MS08020 | 4.4 |
| HSK100A-XMX60-75 | O | HSK100A | 60 | 160 | 101.6 | 75 | 38 | MS16045(4) | KXMC60 | MS10025 | 6.7 |
| *附件需要单独订购 | ●标准库存 | O订单生产 | |||||||||
| 附件Accessories | dm=40 | dm=60 | |||||||||
| 扳手Hex wrench | S10 | S14 | |||||||||
